Depth-First Search (DFS)

Overview

Explores one path fully in a graph or tree before returning to try other paths.

Tree DFS

Example Tree:

Order of searching:

• Pre-order: Node -> Left -> Right.

  [60, 59, 28, 23, 28, 35, 77, 60, 76, 125]

• In-order: Left -> Node -> Right.

  [23, 28, 28, 35, 59, 60, 60, 76, 77, 125]

• Post-order: Left -> Right -> Node.

  [23, 35, 28, 28, 59, 76, 60, 125, 77, 60]

The order of visiting children can be changed, such as visiting the right child before the left. To do this, simply swap the code for the left and right child traversals (use right before left) in the implementation below.

Implementation:

Go to Binary Search Tree for the complete BST implementation.

class BinarySearchTree {
  ...

  preOrderDFS() { ... }
  inOrderDFS() { ... }
  postOrderDFS() { ... }
}

Usage:

const tree = new BinarySearchTree();

...

console.log(tree.preOrderDFS()); // [60, 59, 28, 23, 28, 35, 77, 60, 76, 125]
console.log(tree.inOrderDFS()); // [23, 28, 28, 35, 59, 60, 60, 76, 77, 125]
console.log(tree.postOrderDFS()); // [23, 35, 28, 28, 59, 76, 60, 125, 77, 60]

• Pre-order:

  preOrderDFS() {
    const traversePreOrder = (node, list) => {
      if (node === null) return null;

      // node:
      list.push(node.value);

      // left:
      if (node.left) {
        traversePreOrder(node.left, list);
      }

      // right:
      if (node.right) {
        traversePreOrder(node.right, list);
      }

      return list;
    }

    return traversePreOrder(this.root, []);
  }

• In-order:

  inOrderDFS() {
    const traverseInOrder = (node, list) => {
      if (node === null) return null;

      // left:
      if (node.left) {
        traverseInOrder(node.left, list);
      }

      // node:
      list.push(node.value);

      // right:
      if (node.right) {
        traverseInOrder(node.right, list);
      }

      return list;
    }

    return traverseInOrder(this.root, []);
  }

• Post-order:

  postOrderDFS() {
    const traversePostOrder = (node, list) => {
      if (node === null) return null;

      // left:
      if (node.left) {
        traversePostOrder(node.left, list);
      }

      // right:
      if (node.right) {
        traversePostOrder(node.right, list);
      }

      // node:
      list.push(node.value);

      return list;
    };

    return traversePostOrder(this.root, []);
  }

Graph DFS

Example Graph:

Adjacency Matrix

Implementation:

const adjMatrix = {
  A: { A: 0, B: 1, C: 0, D: 0, E: 0, F: 0 },
  B: { A: 1, B: 0, C: 1, D: 0, E: 1, F: 0 },
  C: { A: 0, B: 1, C: 0, D: 1, E: 0, F: 0 },
  D: { A: 0, B: 0, C: 1, D: 0, E: 1, F: 1 },
  E: { A: 0, B: 1, C: 0, D: 1, E: 0, F: 0 },
  F: { A: 0, B: 0, C: 0, D: 1, E: 0, F: 0 },
};

function adjMatrixDFS(node, graph, values, seen) {
  values.push(node);

  seen[node] = true;

  const connections = graph[node];

  for (const key in connections) {
    if (connections[key] > 0 && !seen[key]) {
      adjMatrixDFS(key, graph, values, seen);
    }
  }

  return values;
}

Usage:

console.log(adjMatrixDFS('C', adjMatrix, [], {})); // ['C', 'B', 'A', 'E', 'D', 'F']
console.log(adjMatrixDFS('A', adjMatrix, [], {})); // ['A', 'B', 'C', 'D', 'E', 'F']
console.log(adjMatrixDFS('B', adjMatrix, [], {})); // ['B', 'A', 'C', 'D', 'E', 'F']

Adjacency List

Implementation:

const adjList = {
  A: ['B'],
  B: ['A', 'C', 'E'],
  C: ['B', 'D'],
  D: ['C', 'E', 'F'],
  E: ['B', 'D'],
  F: ['D'],
};

function adjListDFS(node, graph, values, seen) {
  values.push(node);

  seen[node] = true;

  const connections = graph[node];

  for (let i = 0; i < connections.length; i++) {
    const key = connections[i];

    if (!seen[key]) {
      adjListDFS(key, graph, values, seen);
    }
  }

  return values;
}

Usage:

console.log(adjListDFS('C', adjList, [], {})); // ['C', 'B', 'A', 'E', 'D', 'F']
console.log(adjListDFS('A', adjList, [], {})); // ['A', 'B', 'C', 'D', 'E', 'F']
console.log(adjListDFS('B', adjList, [], {})); // ['B', 'A', 'C', 'D', 'E', 'F']

Matrix (2D Array) DFS

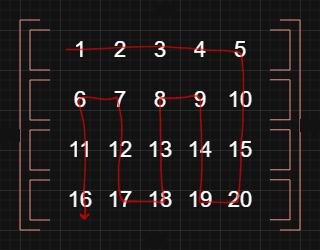

Example 2D Array:

The red line shows the search flow starting from points row: 0 and col: 0.

Implementation:

const arr2d = [
  [1, 2, 3, 4, 5],
  [6, 7, 8, 9, 10],
  [11, 12, 13, 14, 15],
  [16, 17, 18, 19, 20],
];

const directions = [
  [-1, 0], // up
  [0, 1], // right
  [1, 0], // down
  [0, -1], // left
];

function matrixDFS(matrix, row, col, seen, values) {
  if (row < 0 || col < 0 || row >= matrix.length || col >= matrix[0].length || seen.has(`${row}${col}`)) {
    return;
  }

  values.push(matrix[row][col]);

  seen.add(`${row}${col}`);

  for (let i = 0; i < directions.length; i++) {
    const currDir = directions[i];
    matrixDFS(matrix, row + currDir[0], col + currDir[1], seen, values);
  }

  return values;
}

Usage:

console.log(matrixDFS(arr2d, 0, 0, new Set(), [])); // [1, 2, 3, 4, 5, 10, 15, 20, 19, 14, 9, 8, 13, 18, 17, 12, 7, 6, 11, 16]
console.log(matrixDFS(arr2d, 1, 0, new Set(), [])); // [6, 1, 2, 3, 4, 5, 10, 15, 20, 19, 14, 9, 8, 13, 18, 17, 12, 7, 11, 16]
console.log(matrixDFS(arr2d, 2, 3, new Set(), [])); // [14, 9, 4, 5, 10, 15, 20, 19, 18, 13, 8, 3, 2, 7, 12, 17, 16, 11, 6, 1]
